型號 Type

名稱 Name

使用范圍 Usage range

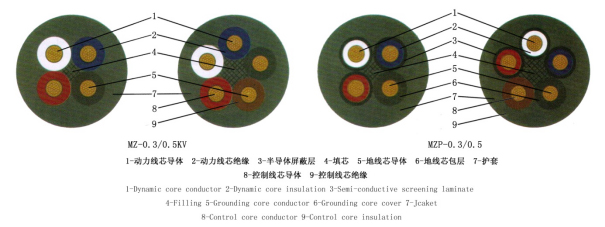

MZ-0.3/0.5

煤礦用電鉆電纜
Rubber cover cable of circuit drills for colliery

煤礦井下額定電壓0.3/0.5kv及以下電鉆設備的電源連接

MZP-0.3/0.5

煤礦用電鉆屏蔽橡套電纜
Rubber cover screening cable of circuit drills for colliery

Power connection of circuit drills in the shaft with rated voltage of 0.3/0.5kv and below.

芯數×導體標稱截面(mm2)
Number of cores × nominal sectional area of theconductor

導體根數/單絲
標稱直徑
Number of conductors/filament
Nominal diameter

標稱厚度
Nominal thickness

電纜外徑
Extecnal diameter of cable

動力線芯
Dynamic core

地線芯
Grounding core

控制線芯
Control core

動力線芯絕緣
Dynamic core

護套
Jacket

MZ-0.3/0.5

MZP-0.3/0.5

3×2.5

1×2.5

77/0.20

1.0

3.5

17.7-19.4

19.5-21.5

3×4

1×4

126/0.20

1.0

3.5

19.1-21.0

21.0-23.1

3×2.5

1×2.5

1×2.5

77/0.20

1.0

3.5

18.9-20.8

21.1-23.2

3×4

1×4

1×4

126/0.20

1.0

3.5

20.5-22.6

22.8-25.1
